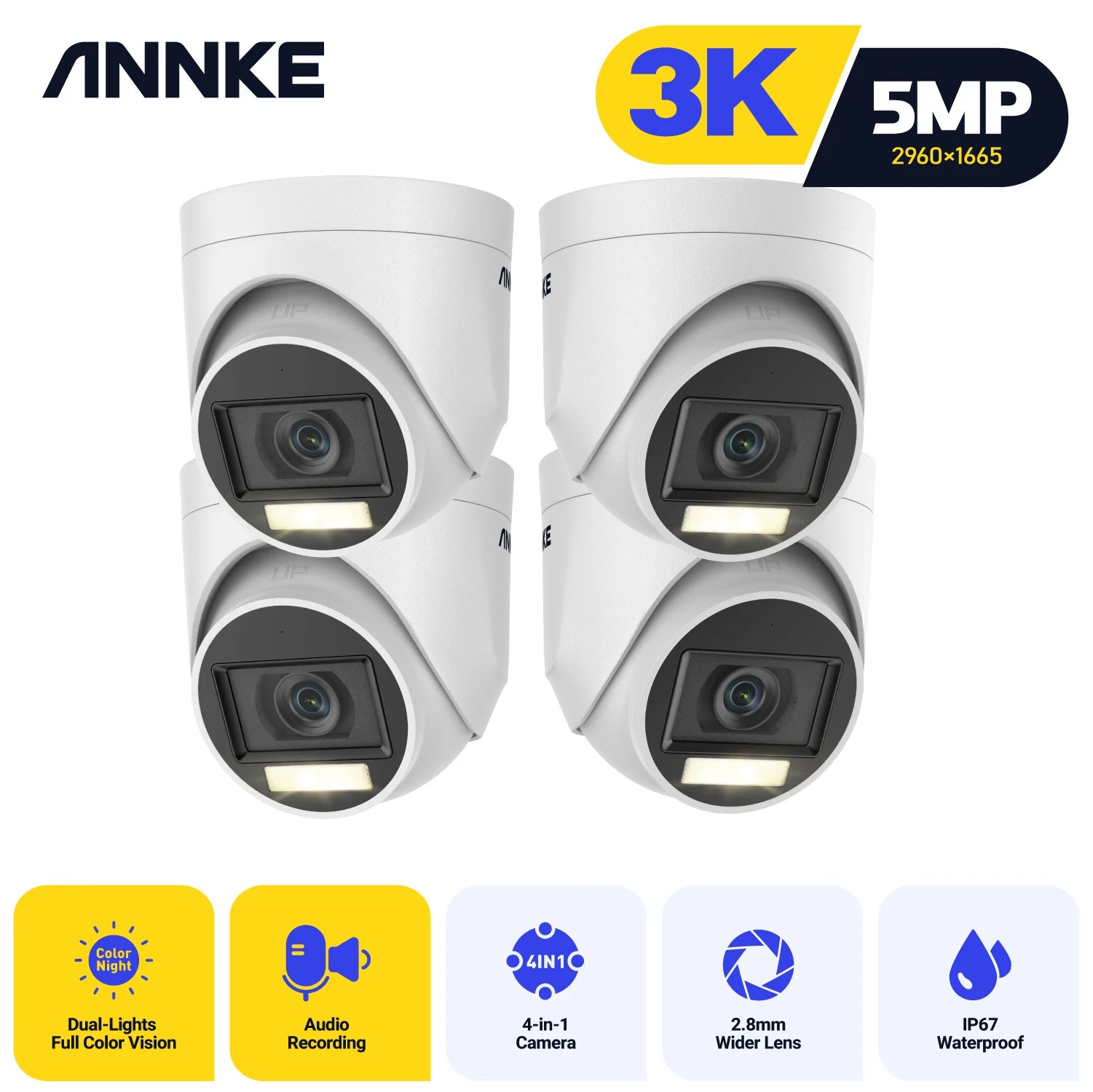

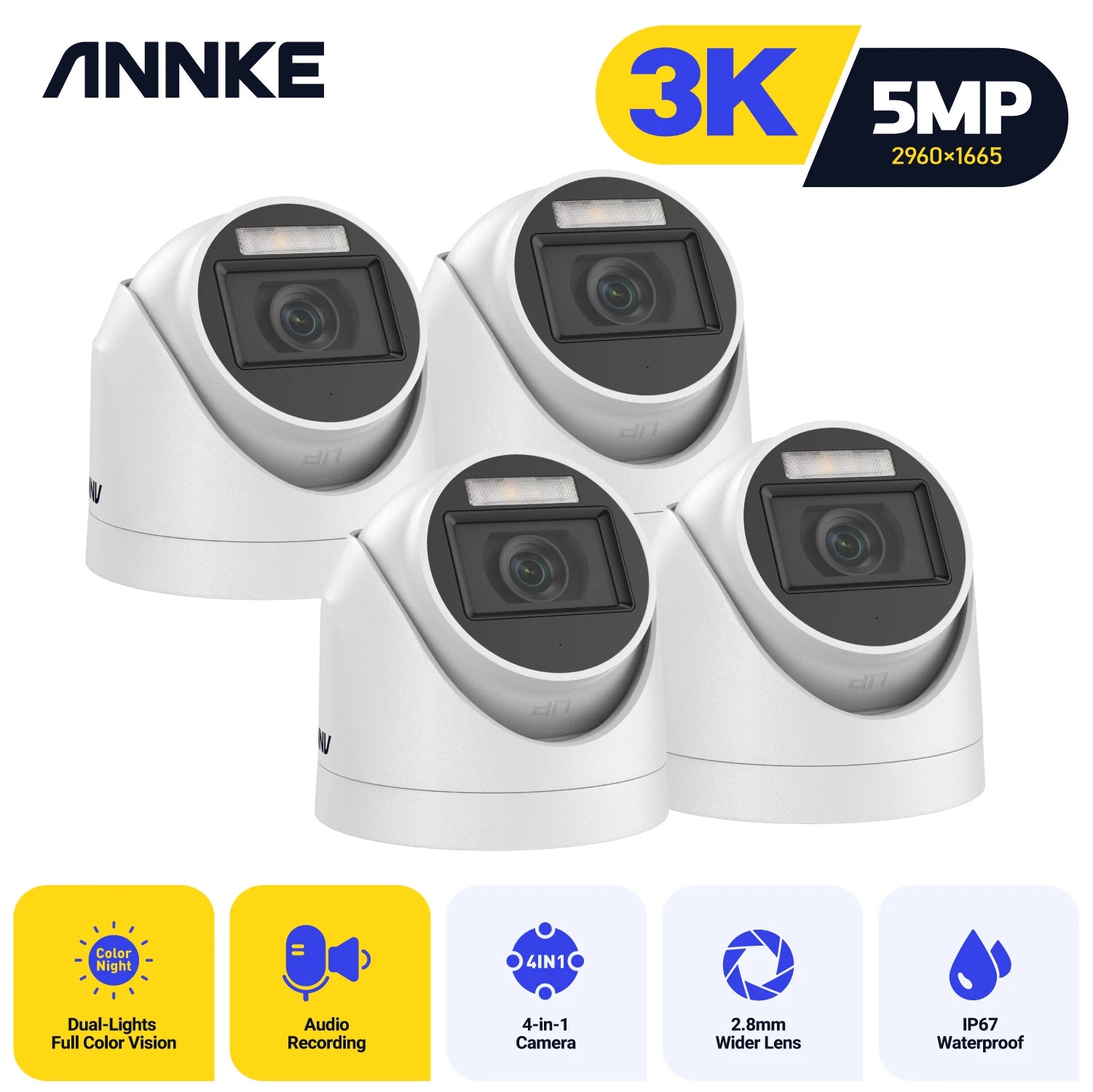

Analog HD Camera |
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |

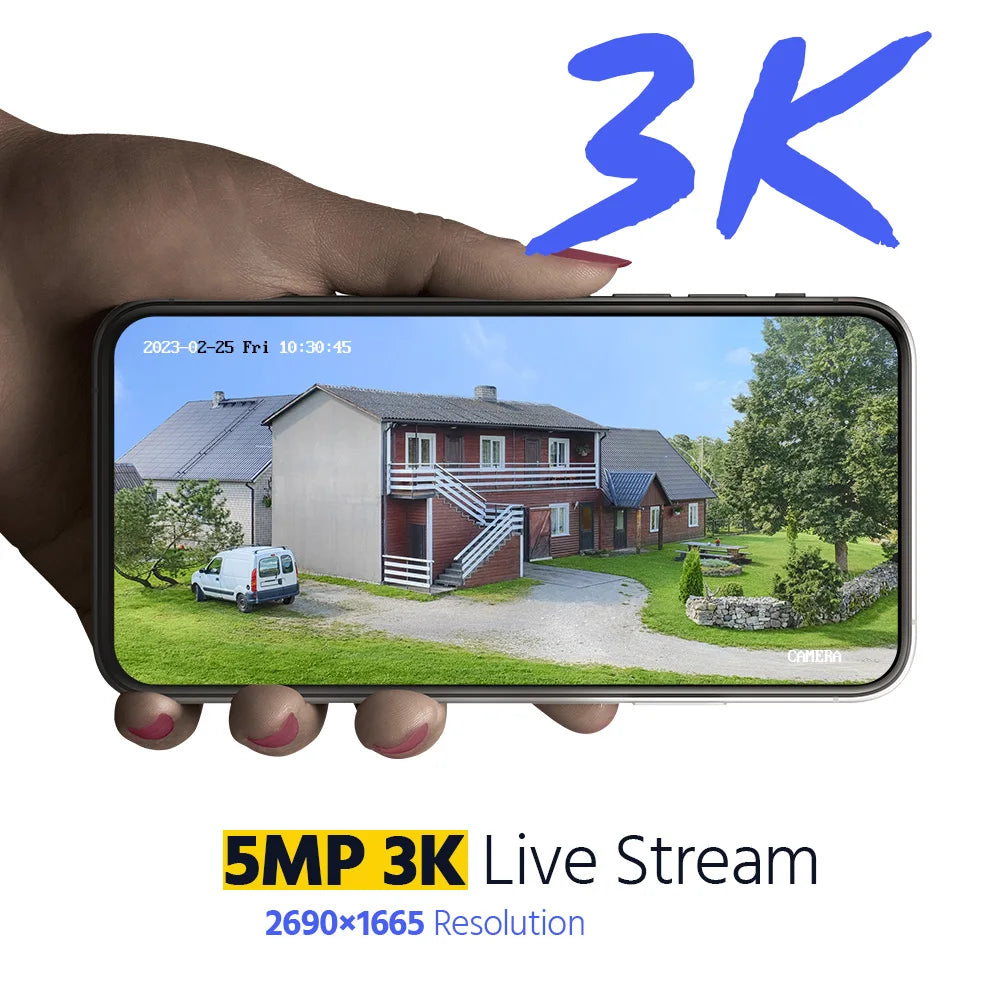

2960 (H) × 1665 (V)(16:9) |
Signal System |
PAL/NTSC |
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC |
Lens |
2.8mm |
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
Angle of View |

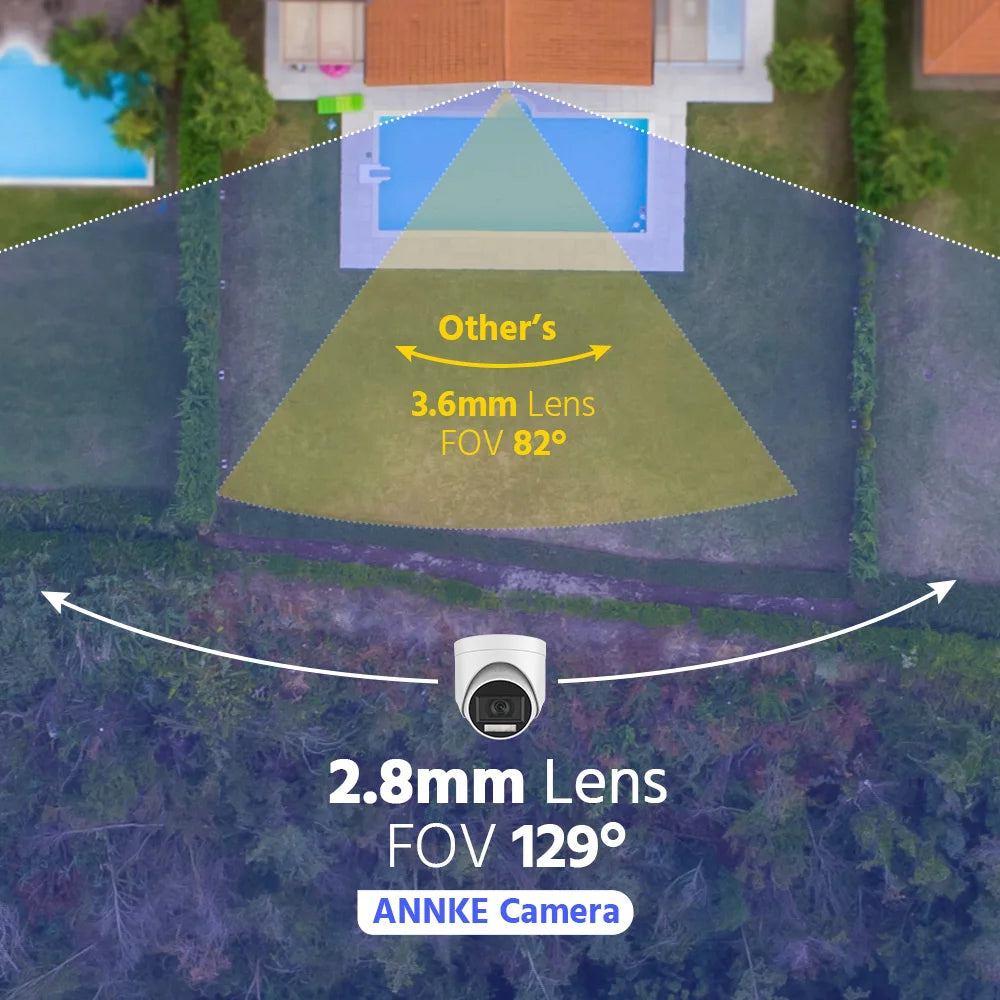

Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
Supplement Light type |
1 white Light & 1 EXIR |
Supplement Light Range |

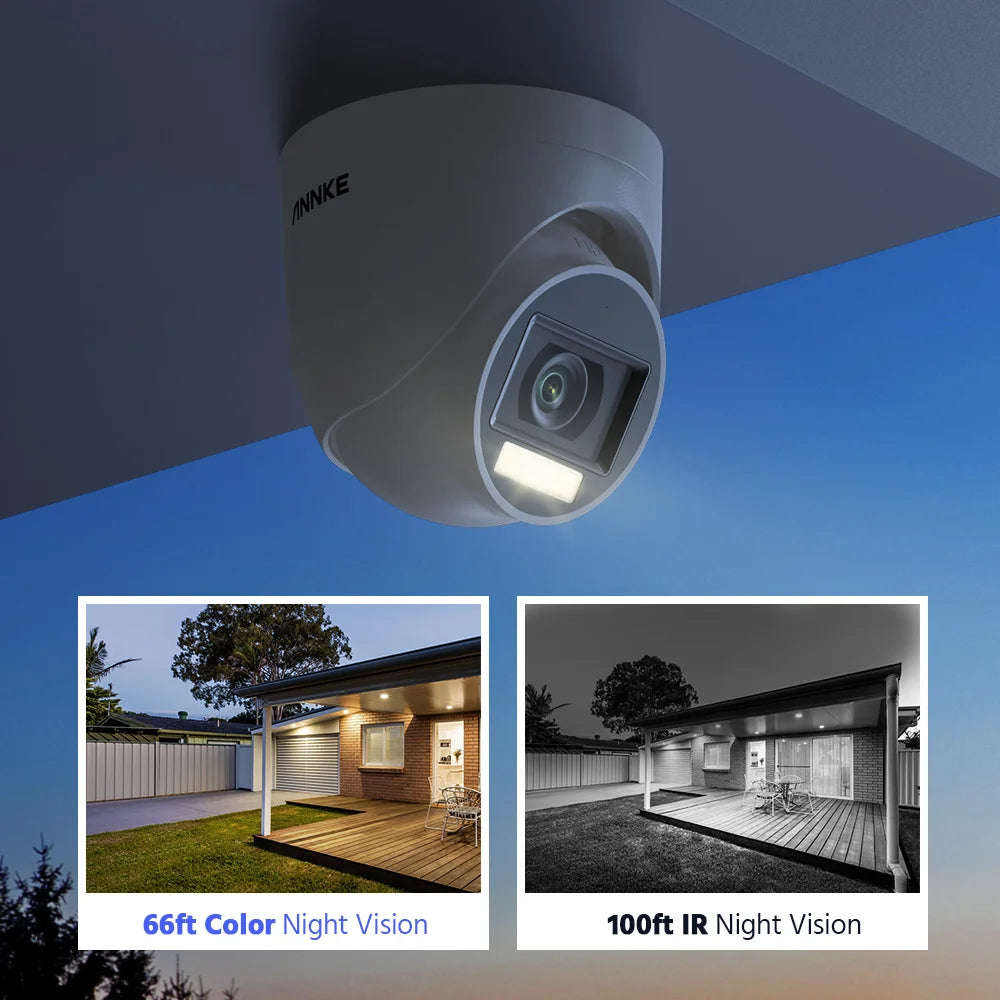

IR: Up to 30 m, white Light: Up to 20 m |
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
Wide Dynamic Range |

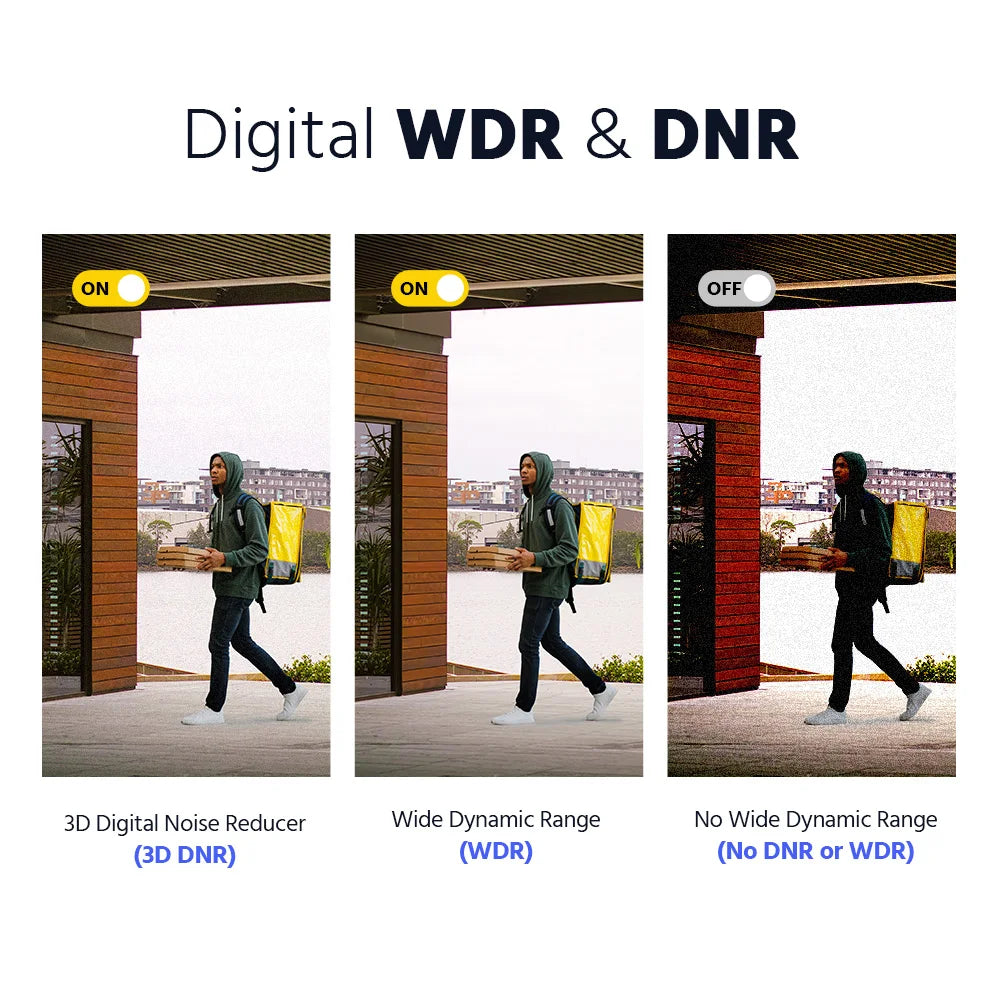

Digital WDR |
Audio |
Built-in mic |
IR Cut Filter |
Yes |
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
General |
Housing |
Matal & Plastic |
Color |
White |
Operating Power |
12 VDC ± 25% |
Consumption |
Max. 2.9 W |
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP67 |
Dimension (L x W x H) |
80 mm × Ø 85.1 mm (3.1" × Ø 3.4") |
Weight |
Approx. 300 g (0.66 lb.) |
